Scissor Lifts

• Capacity
• From 230 kg to 450 kg (varies by model)

• Car Dimension
• Platform: typically 2.26 m 1.12 m (varies by model)

• Control Device
• Other, Proportional control, joystick operated

• Drive Type
• Other, Hydraulic, crawler (tracked) drive

• Inclination
• Gradeability up to 40%

• Load Capacity
• 230 kg - 450 kg (depends on platform size and model)

• Material
• other Sheet, High-strength steel

• Max. Lifting Height
• 8 m to 14 m (model dependent)

• Max. Lifting Weight
• See Load Capacity

• Mechanism Type
• Other, Hydraulic scissor mechanism

• Noise Level
• <70 dB(A)

• Power Supply
• Battery powered (typically 4 x 6V maintenance-free batteries)

• Safety Device
• Other, Safety locks, emergency lowering system, tilt sensor, overload protection, flashing beacon

• Speed
• 2.5 - 3.0 km/h (stowed); 0.8 km/h (elevated)

• Type

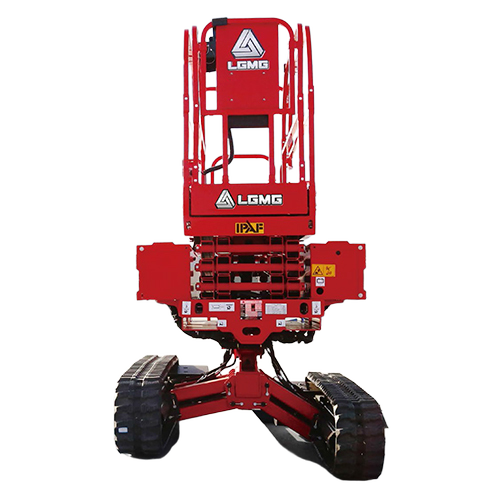

• Other, All-Terrain Crawler Scissor Lift

• Usage
• Other, Aerial work, construction, outdoor maintenance, rough terrain access

• Voltage
• 24V DC (standard for electric scissor lifts)

• Working Temperature
• -20C to +45C

• Capacity
• 230 kg

• Car Dimension
• 1.78 m x 0.76 m (platform)

• Control Device
• Other, Platform and ground controls

• Drive Type
• Other, Crawler / Track driven

• Inclination
• Allowable up to 3

• Load Capacity
• 230 kg

• Material
• other Sheet, High-strength steel

• Max. Lifting Height
• 7.8 meters

• Max. Lifting Weight
• 230 kg

• Mechanism Type
• Other, Hydraulic scissor

• Noise Level
• <70 dB

• Power Supply
• Battery powered

• Safety Device
• Other, Emergency lowering, safety alarms, tilt sensor

• Speed
• 3.5 km/h (stowed), 0.8 km/h (elevated)

• Type
• Other, Crawler Scissor Lift

• Usage
• Other, Aerial work, construction, maintenance

• Voltage
• 24V DC

• Working Temperature
• -20C to 50C

• Capacity
• 240 kg

• Car Dimension
• Platform Size: 1.28 m x 0.7 m

• Control Device
• Other, Push Button Controls on Platform

• Drive Type
• Other, Manual Push

• Load Capacity
• 240 kg

• Material
• other Sheet, High-strength Steel

• Max. Lifting Height
• 5.8 m

• Max. Lifting Weight
• 240 kg

• Mechanism Type
• Other, Scissor Mechanism

• Noise Level
• Low

• Power Supply
• Manual (Push Around)

• Safety Device
• Other, Guard Rails, Emergency Lowering, Overload Protection

• Type

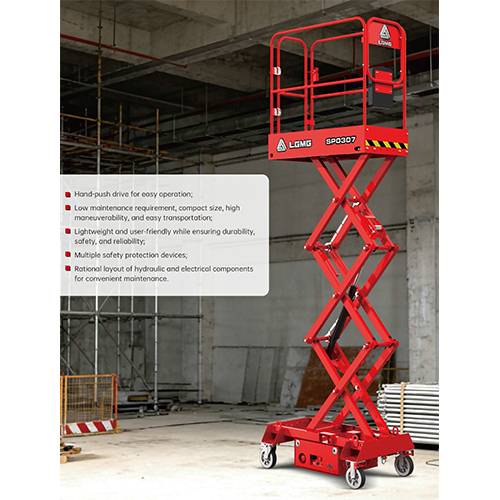

• Other, Push Around Scissor Lift

• Usage
• Other, Indoor Maintenance, Installation, Construction, Cleaning

• Capacity
• Rated Load 680 kg

• Car Dimension
• Platform size (LW): 2.88 m 1.83 m

• Control Device
• Other, Proportional control

• Drive Type
• Other, All-wheel drive

• Inclination
• Max. gradeability 40%

• Load Capacity
• Platform Load 680 kg

• Material
• other Sheet, High-strength steel

• Max. Lifting Height
• 13.8 m (platform height approx. 12 m)

• Max. Lifting Weight
• 680 kg

• Mechanism Type
• Other, Hydraulic scissor mechanism

• Noise Level
• < 70 dB(A)

• Overhead Height
• Full height with guardrails: 2.75 m (stowed)

• Power Supply
• Battery powered / Electric

• Safety Device
• Other, Emergency descent, Tilt alarm, Overload sensor

• Speed
• Travel speed (stowed/raised): 4.5/0.8 km/h

• Type
• Other, Rough Terrain (RT) Scissor Lift

• Usage
• Other, Aerial work, maintenance, construction

• Voltage
• 48V

• Working Temperature
• -20C ~ +40C

• Capacity
• 230 kg

• Car Dimension
• 2.4 m x 1.2 m

• Control Device
• Other, Proportional Control

• Door Opening Size
• 0.8 m

• Drive Type
• Hydraulic

• Inclination
• 3 max working angle

• Load Capacity
• 230 kg

• Material
• other Sheet, High-strength Steel

• Max. Lifting Height
• 14 m

• Max. Lifting Weight
• 230 kg

• Mechanism Type
• Other, Electric Scissor

• Noise Level
• <70 dB

• Power Supply
• Electric

• Safety Device
• Other, Emergency Stop, Tilt Sensor, Descent Alarm

• Speed
• 3.5 km/h (stowed), 0.8 km/h (raised)

• Type
• Other, Self-propelled Scissor Lift

• Usage
• Other, Construction, Maintenance, Warehousing

• Voltage
• 24 V DC

• Working Temperature
• -20C to +50C

• Capacity
• 320 kg

• Car Dimension
• 2.41 m x 0.81 m (platform)

• Drive Type
• Other

• Inclination
• Max. Safe working slope: 1.5 (longitudinal), 3 (lateral)

• Load Capacity
• 230 kg - 450 kg (model dependent)

• Material
• other Sheet

• Max. Lifting Height
• 8 m

• Max. Lifting Weight
• As per Rated Load (320 kg typical)

• Mechanism Type
• Other

• Noise Level
• <70 dB(A)

• Power Supply
• Electric/Battery

• Safety Device
• Other, Emergency lowering, tilt sensor, pothole protection, overload protection

• Speed
• 0-3.2 km/h

• Usage
• Other, Indoor/Outdoor maintenance, installation, and warehousing

• Voltage
• 24V DC

• Working Temperature
• -20oC to +50oC
